Smart Water Network Monitoring System

Smart Water Network Monitoring | Real-Time Monitoring · Smart Alerts · Water Security

JINCHI Smart Water Network · Real-Time Monitoring · Smart Alerts · Remote Control · Data-Driven Decisions — Building a Safe, Efficient, and Green modern urban water network

Product Overview

Smart Water Network · Intelligent Future

The Smart Water Network Monitoring System integrates IoT, big data, and AI technologies to provide comprehensive intelligent management across urban water supply, drainage, wastewater treatment, and flood control. Smart sensors deployed at key network nodes collect real-time data on flow, pressure, water quality, and water levels, building a digital twin model of the urban water network.

Enables leak detection alerts, online water quality monitoring, remote pump station control, and stormwater flood simulation — helping water utilities reduce costs, improve efficiency, ensure urban water security, and enhance resource utilization.

30%+

Leakage Reduction

99.5%

Water Quality Accuracy

≤5s

Alert Response Time

20%+

O&M Cost Reduction

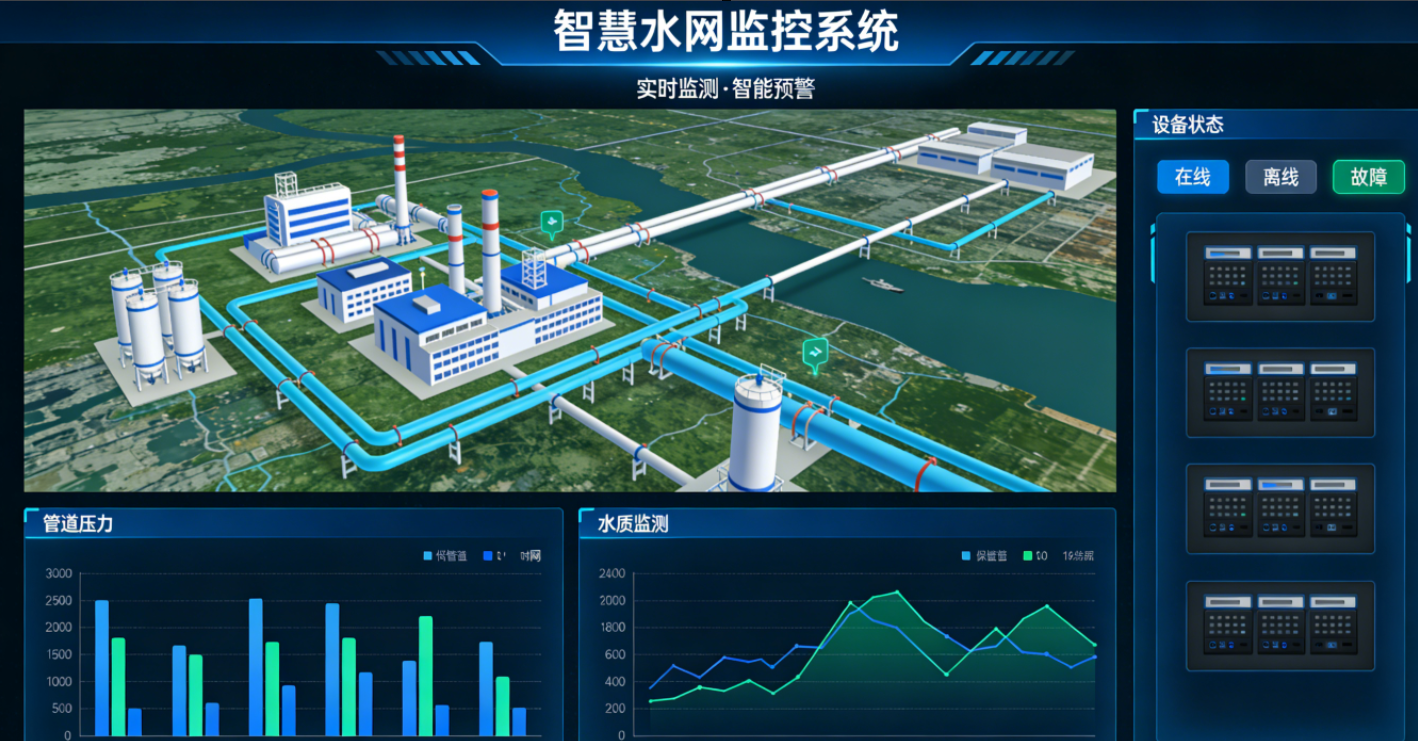

Urban Water Network Digital Twin Platform

Core Features

Six core modules covering full-process intelligent water network management — making every drop "visible, manageable, and controllable."

Network Monitoring Map

GIS map displays real-time pipeline distribution, pressure, flow, and water quality data — anomalies auto-highlighted.

GIS Visualization
Real-time Pressure & Flow
Auto Anomaly Location

Water Quality Monitoring

Multi-parameter sensors monitor pH, turbidity, residual chlorine, COD — auto-alerts on threshold exceedance.

24/7 Continuous Monitoring
Multi-Parameter Collection
Trend Analysis

Leakage Detection

AI-powered leak detection using flow and pressure data — pinpoints leak locations to meter-level accuracy.

Night Flow Analysis
Pressure Wave Leak Detection
Leak Volume Estimation

Flood Control & Drainage

Integrates weather radar data to predict flood risks and intelligently control pumps and gates.

Weather Data Fusion
Flood Depth Simulation
Remote Pump Control

Energy Analytics

Energy efficiency analysis for pumps and treatment plants — optimizing operations to reduce power consumption.

Real-time Specific Energy
Peak/Off-Peak Pricing Scheduling
Equipment Health Assessment

Mobile O&M

Mobile app for real-time data viewing, alert receiving, work order dispatch, and on-site photo documentation.

Real-time Data Push
Work Order Dispatch
On-site Photo Records

System Architecture

Perception Layer

Smart pressure sensors, flow meters, water quality sensors, level gauges, and smart water meters — collecting real-time network data.

Network Layer

NB-IoT, 4G/5G, LoRa and other communication methods ensuring stable, secure, real-time data transmission to the cloud.

Platform Layer

IoT Hub connectivity, big data storage, AI analytics, and digital twin models providing powerful data processing capabilities.

Application Layer

Control center dashboards, web management systems, and mobile apps — role-based business applications.

Perception Network Platform Application

Four-Layer Architecture · Stable & Reliable

Data Flow Control Flow

Perception → Network → Platform → Application — building a complete smart water ecosystem

Application Scenarios

Covering all urban water scenarios — empowering smart water networks across diverse use cases

Urban Water Supply

Treatment Plant Pressure Control
DMA Leakage Control
Peak Pressure Assurance
End-of-Line Water Quality

Industrial Park Drainage

Discharge Point Monitoring
Exceedance Alerts
Treatment Plant Coordination
Total Discharge Control

Flood Control Command

River Level Monitoring
Flood Simulation
Remote Pump/Gate Control
Emergency Resource Coordination

Secondary Water Supply

Tank Level Monitoring
Chlorine/Turbidity Monitoring
Pump Operation Status
Maintenance Reminders

Rural Drinking Water

Small Station Water Quality
Network Pressure Assurance
Source Water Level Alerts
Outage Alerts

Smart Irrigation

Soil Moisture Monitoring
Smart Irrigation Control
Water Usage Analytics
Water-Saving Evaluation

Technical Advantages

AI Algorithms

Deep learning-based leak detection, water quality prediction, and load forecasting — industry-leading accuracy.

Digital Twin

Hydraulic modeling for real-virtual mapping and simulation of network operations.

Built-in Security

Device authentication, data encryption, and access control — three layers of water data protection.

Standard Interfaces

Standard API for seamless integration with upstream platforms, GIS, and SCADA systems.

Make Every Drop "Visible, Manageable, and Controllable"

Our water experts provide one-on-one consultation to tailor a smart water network solution
